Description

GIANT SLAYING PERFORMANCE.
Our latest iteration of the C4 includes our white/red dual lens providing extended functionality whilst still retaining its renowned performance.

2 BEAM OPTIONS

The C4 comes in 2 variations of beam options to help you build the perfect lighting for the required application. A dual-tone lens allows you to easily customise your lighting needs by switching between a crisp 5700k white light, or a red diffused 650nm to maintain your natural night vision.

NAVIGATE & SEE BEYOND.
Constructed with high quality materials, our C4 Marine Edition is protected against vibrations, accompanied by an IP68 resistance rating.

The nitty
gritty.

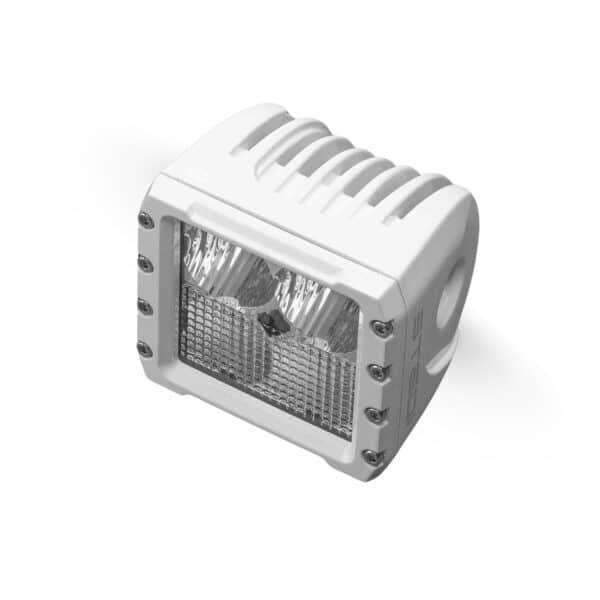

Marine White C4 LED Light Cube | Dual Lens

2 x CREE XM-L2 5700K
2 x XPG3 650nm
Environmentally sealed and moulded Deutsch DT-3 connector with male wire tail included
RFI and EMI suppressed circuity ensure no interference with sensitive radio equipment
Fitted with Gore Breather Vent – Certified IP68 | Submersible to 3m
316 Series Stainless Steel Bracket and Fasteners
Above Ground Lead

Beam Characteristics

Spot Beam: Relentless we’re still shocked every time we turn it on – Potent enough to take on the task of stealth driving light.
Diffused Beam: A homogeneous flood beam that is smooth and almost cloudy in light distribution making it an ideal near-field work light, reverse, or camp light.
Wide Beam: The wide beam produces a deeper flood beam in comparison to diffuse, better suited to applications requiring a longer throw flood beam.
Dual Lens: Providing a useful flood beam when a large area of clear visibility is required with the addition of a 650nm (red)/5700k (white) diffused beam ideal for working under without dazzling your eyes.

LED POWER OUTPUT	2 x 10w LEDs (flood) 2 x XPG3 (diffused)
LUMENS	116 metres @ 1 Lux
OPERATING VOLTAGE	12v & 24v Compatibility
IP RATING	IP68
LED	CREE XML2
COLOUR TEMPERATURE (CCT)	5700K (flood) / 650nm (diffused)
MATERIAL	Die Cast Aluminium Housing
LENS	Lexan Optical
MOUNTING BRACKET	Stainless Steel U-Bracket
BOLTS AND FITTINGS	Included
BEAM TYPE	Spot
LIFE SPAN	30,000 Hours
AMP DRAW	1.5A (flood) / 1.1A (diffused) @ 12.0v
WEIGHT	0.550kg
